ASM-504M40 40" Extension Articulating TV Bracket for 32" - 70

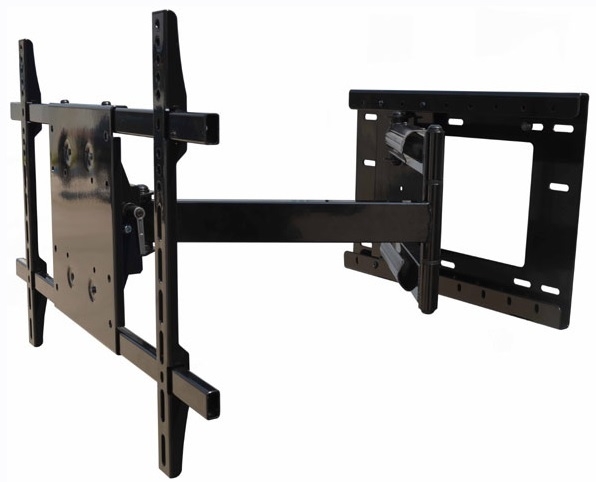

40 inch Extension Articulating TV Wall Bracket - ASM-504M40

Alternative Views:

List Price: $399.99
Sale Price: $369.00
Savings: $30.99

Availability:: Usually Ships in 24 Hours
Product Code: ASM-504M40


Hot Item! Looking for a universal mounting bracket for your 32" - 70" flat screen TV or monitor with 40" extension, then the All Star Mounts ASM-504M40 is for you. This one of a kind articulating wall mount fits TVs with VESA mounting patterns ranging from 100x100mm - 600x400mm. The 40 inch extension from wall allows up to 90º left or right swivel on TVs 76" wide or less.

The TV when attached can be pulled out from the wall and move to the left or right and easily be moved back to its home position, at a depth of 3.0 inches from the wall. Great for use in cabinets, Armoires, viewing TV around a corner or in the medical field.

  • Adjustable tilt downward to reduce glare from above or windows
  • May be installed to swing out from left or right
  • 90° of swivel allows endless viewing possibilites
  • Extends 3.0 - 40in. from the wall
  • Cable management tracks attached to arms to conceal cables


  1. That the display screen size is only an approximation. Your display is compatible with this mount as long as it has a VESA mounting pattern and weight that fit within the size and weight limits listed above.
  2. If mounting a LG or Panasonic check the VESA mounting holes on back of the TV. By measuring If the mounting holes located on back the TV are greater than VESA 600x400mm (23.6" w x 15.75" h) this bracket will not fit. We carry adapter plates and other mounts that are compatible with them. For example some LG models have a mounting pattern of 800x200mm ( 31.5" w x 787" h) and Panasonic are (25.9" w x 12.9" h) both are not compatible with this particular mount. If unsure email us your make and model of TV and we will tell if it is compatible or not.
TV size range: 32" - 70"
Orientation Landscape
Weight capacity: 125lb (56.6kg)
Max mounting pattern: 600x400mm (23.62" x 15.74")
VESA mounting patterns: 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm
Depth from wall: 3.0” (76.2mm)
Maximum extension 40" (1016mm)
Tilt: +5/-15 degrees
Swivel ±90
Roll adjustment: +/-3° for leveling
Dual wall plate Lateral Shift: 6" left or right in 2" increments
Wall Plate Dimensions 19.0" W x 12 .6" H
Mounting surface: wood stud, concrete (minimum concrete thickness 8")
Stud spacing: dual stud 16” on center
Construction: high-grade cold rolled steel
Cable Management: Yes attached to arms
Product finish: scratch resistant epoxy powder coat
Color: Black
Model number: ASM-504M40
